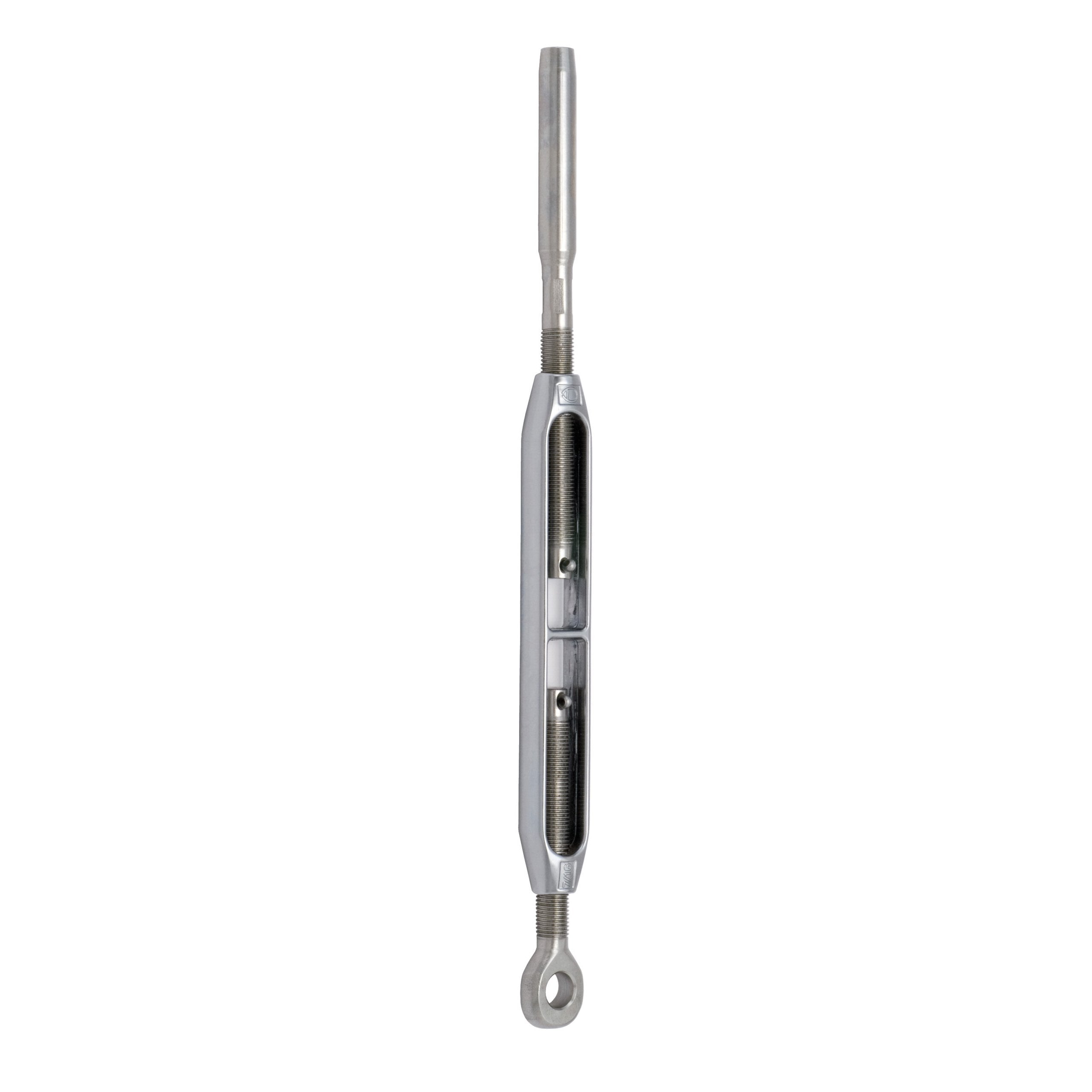

Turnbuckle - 1/4”, ø4 mm Swage Terminal/Eye, ø6,5 mm hole

Turnbuckle with Swage Terminal/Eye terminals, thread size 1/4”, to be combined with ø4 mm wire applications. The turnbuckle is made with a chrome plated aluminium bronze body and marine-grade stainless steel terminals, providing superior resistance to corrosion and thread seizing, ensuring reliable and precise rig tuning in line with Seldén's guidelines.

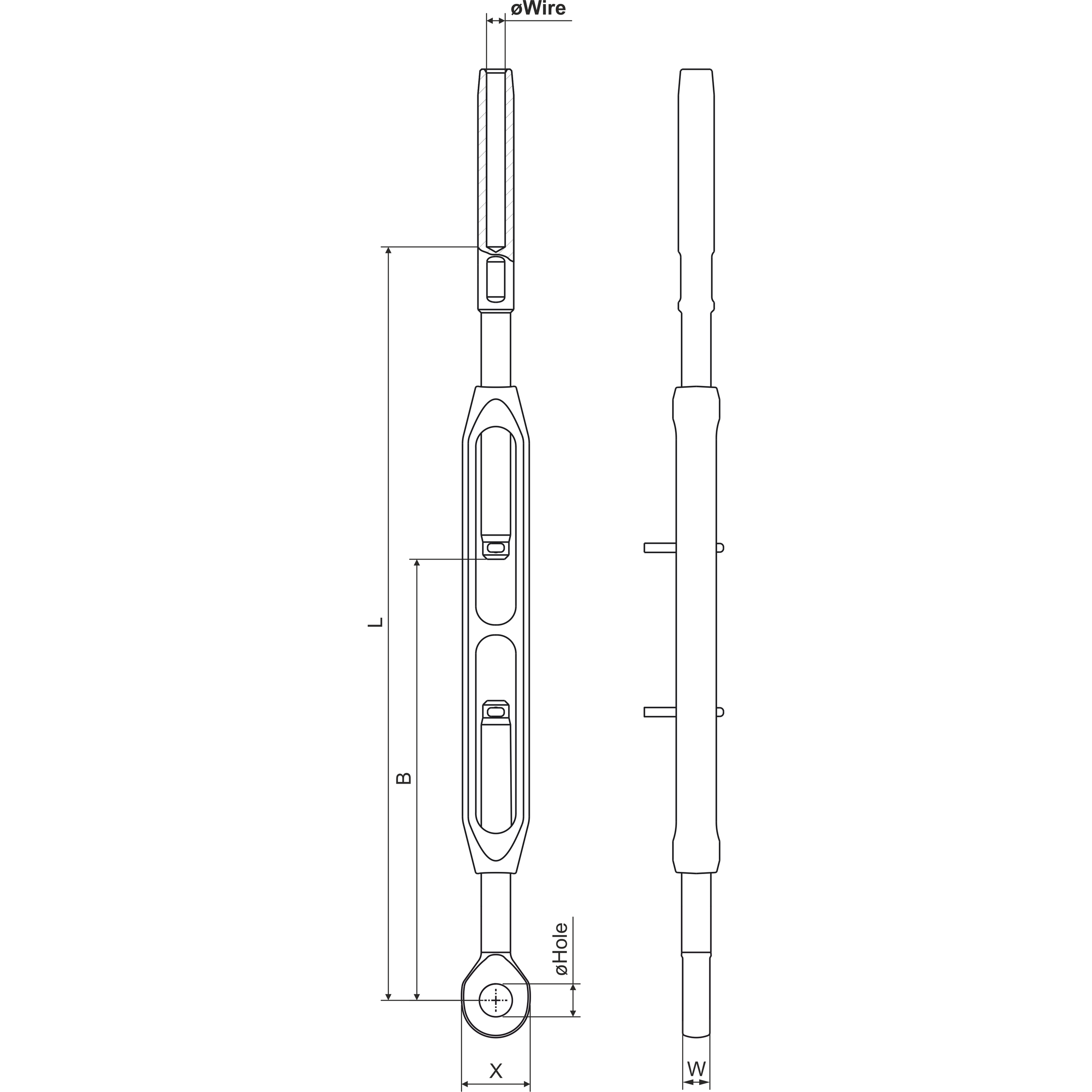

Wire diam: 4 mm
Thread size: 1/4”
Hole: 6.50 mm
L-MIN: 131 mm
L-MAX: 202 mm
W: 13 mm
X: 5 mm
