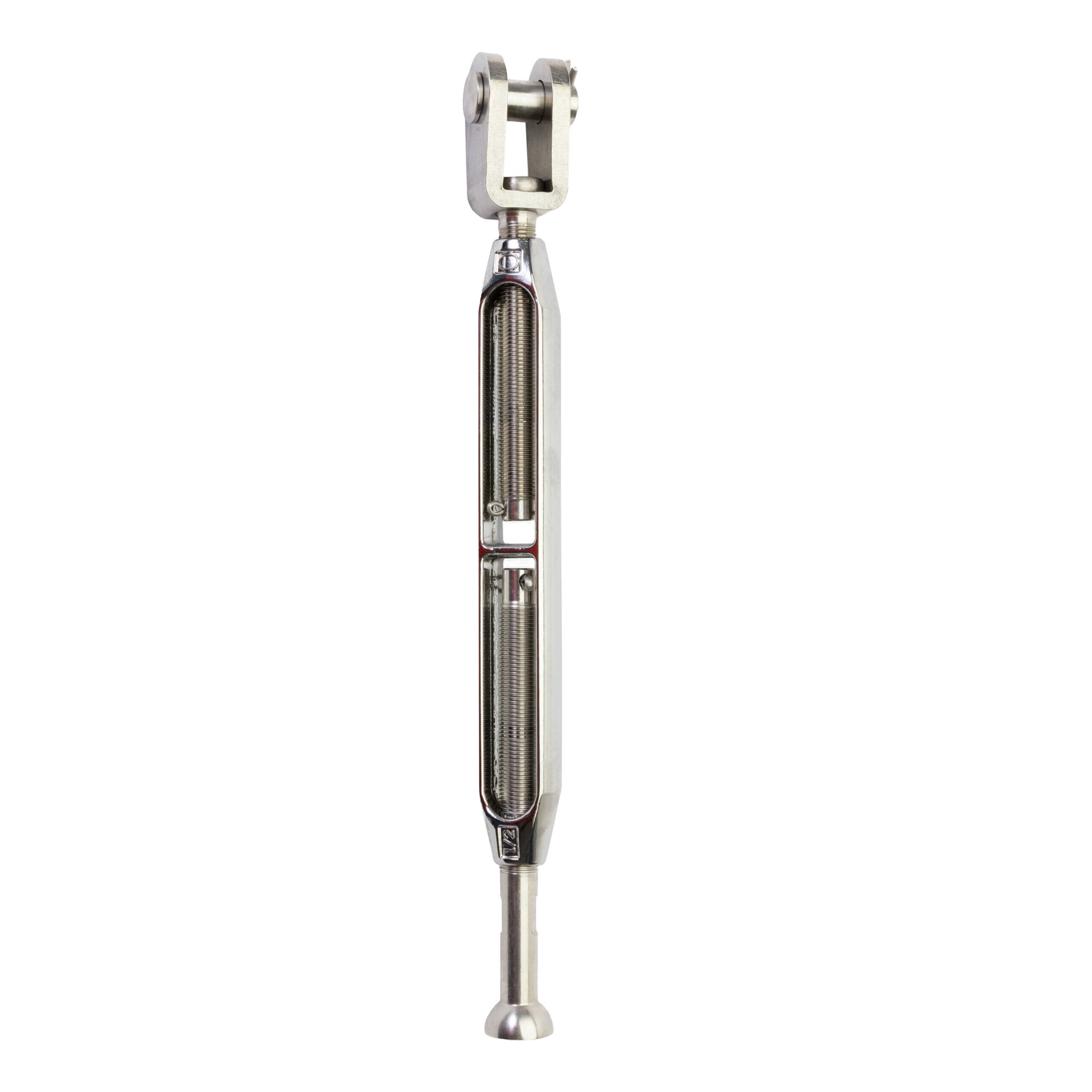

Turnbuckle - Bronze Body, Stainless Terminals, 3/8”, Fork/Stemball R14, ø9,5 mm Clevis Pin

Turnbuckle with Fork/Stemball terminals, thread size 3/8”, designed for R14 applications. The turnbuckle features a chrome plated aluminium bronze body and marine-grade stainless steel terminals, providing superior resistance to corrosion and thread seizing, making it ideal for precise and safe rig adjustments in line with Seldén's guidelines.

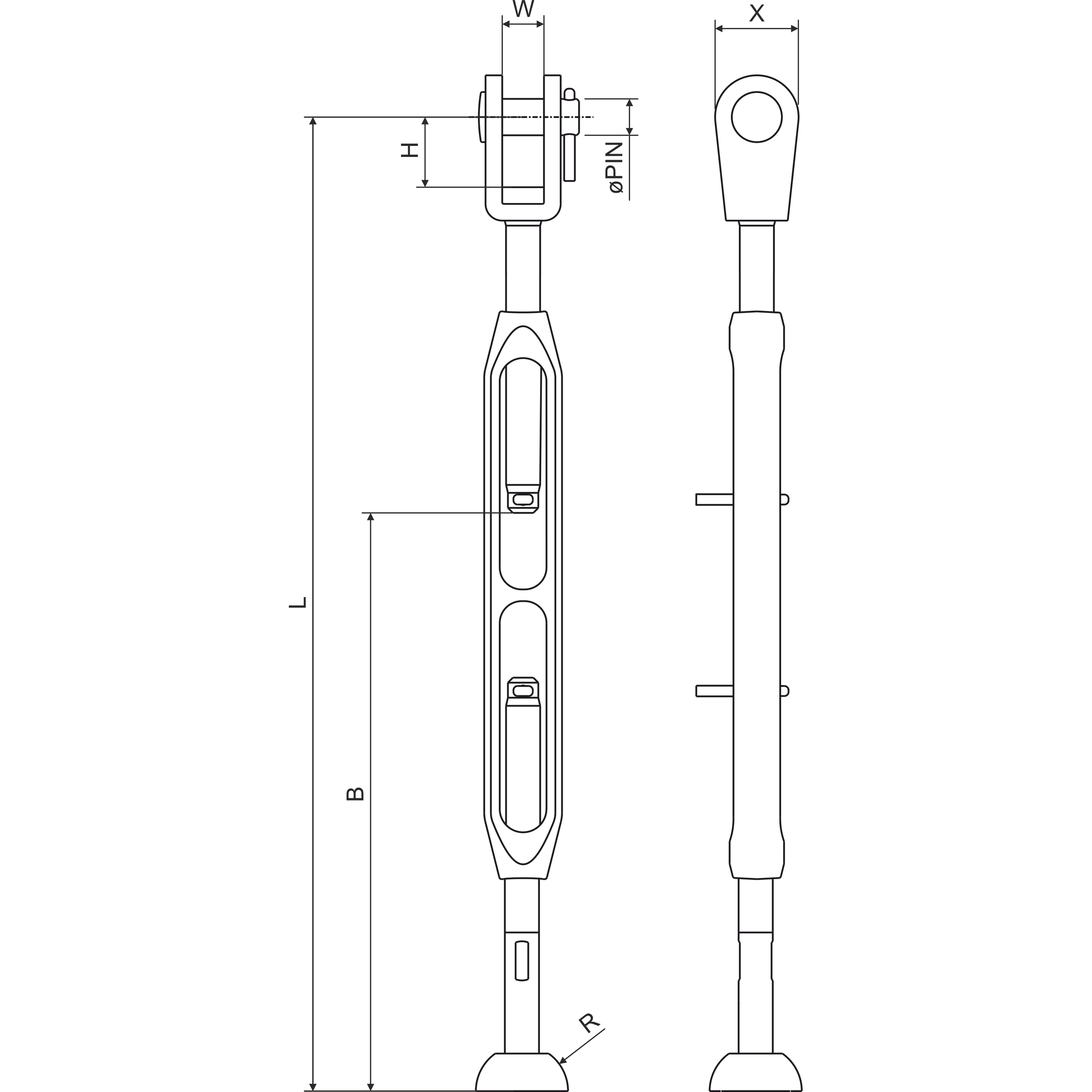

Thread size: 3/8”
R: 14 mm
Clevis pin Ø: 9.50 mm
L-MIN: 212 mm
L-MAX: 314 mm
W: 10.50 mm
H: 18.00 mm
X: 20 mm

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
