Turnbuckle - 7/16”, Eye/Eye, ø11,5 mm hole

Turnbuckle with Eye/Eye terminals, thread size 7/16”, to be combined with ø6 mm wire applications. The turnbuckle is made with a chrome plated aluminium bronze body and marine-grade stainless steel terminals, providing superior resistance to corrosion and thread seizing, ensuring reliable and precise rig tuning in accordance with Seldén's guidelines.

BodyType: bronze
Thread size: 7/16”

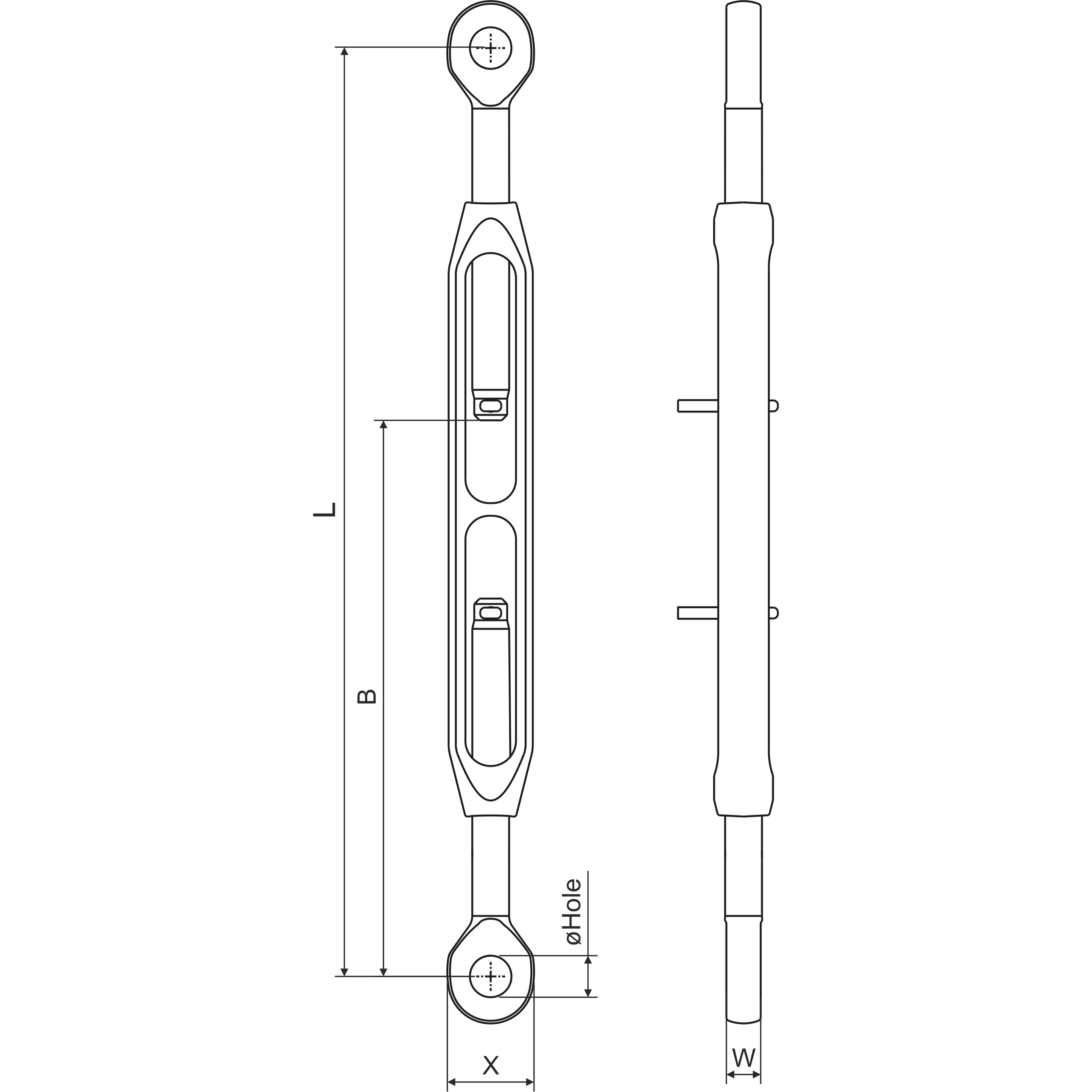

B-MIN: 106 mm
B-MAX: 230 mm
L-MIN: 204 mm
L-MAX: 328 mm
Eye Diam: 11.50 mm
W: 10 mm
X: 24 mm
