Turnbuckle - 3/8”, Open/Fork, ø9,5 mm Clevis Pin

Turnbuckle with Open/Fork terminals, thread size 3/8”, to be combined with ø5 or ø6 mm wire applications. Constructed with a chrome plated aluminium bronze body and high-grade marine stainless steel terminals, this turnbuckle ensures high resistance to corrosion and thread seizing, providing reliable and precise rig tuning in accordance with Seldén's guidelines.

BodyType: bronze
Thread size: 3/8”

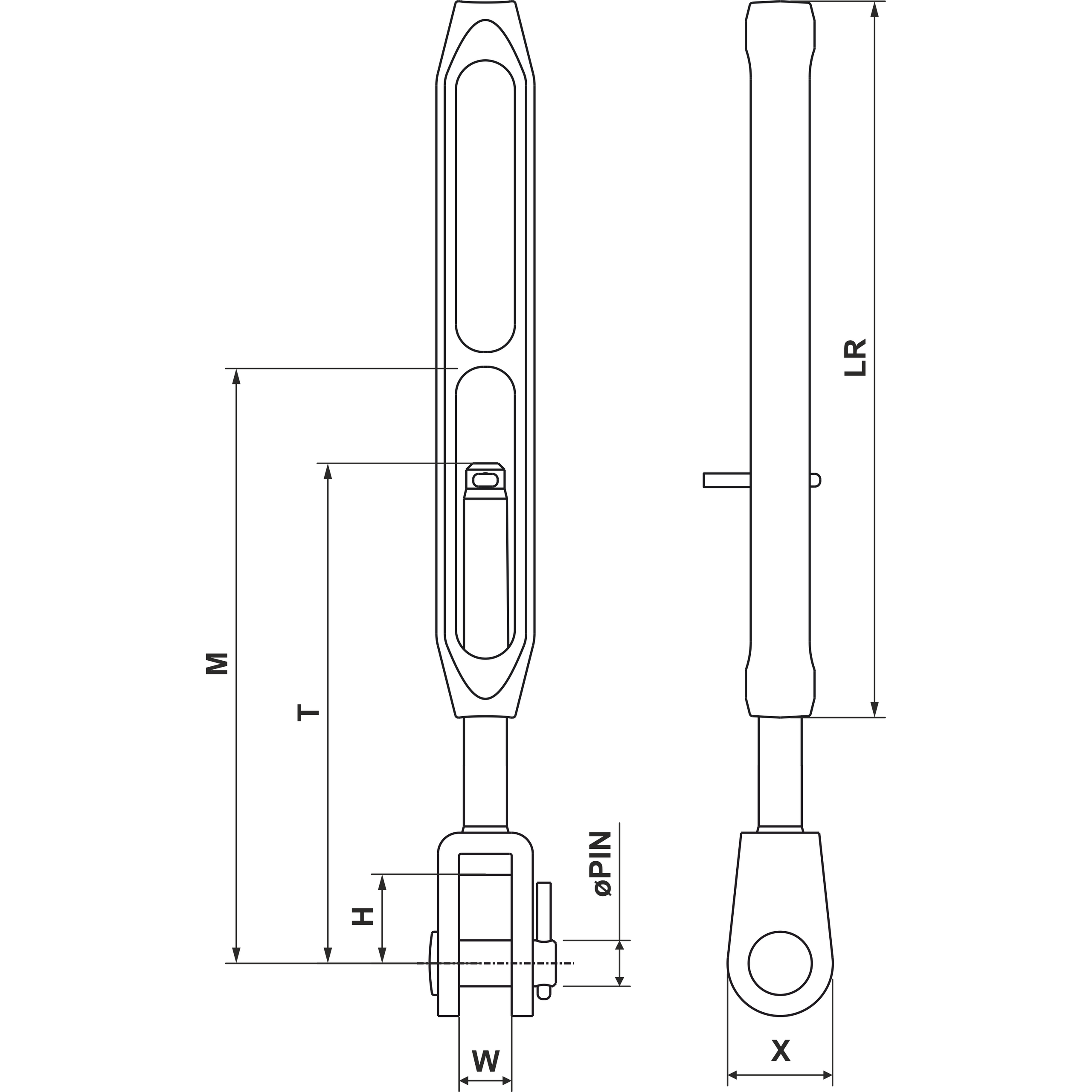

M-MIN: 99 mm
M-MAX: 150 mm
LR: 145 mm
T: 94 mm
W: 11.00 mm
H: 18.00 mm
X: 20.00 mm
Pin diam: 9.50 mm

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
