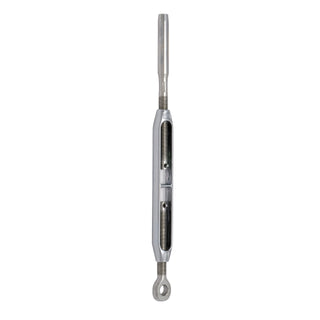

Turnbuckle - 3/4”, ø12 mm Swage Terminal/Eye, ø19,5 mm hole

Turnbuckle with Swage Terminal/Eye terminals, thread size 3/4”, to be combined with ø12 mm wire applications. The turnbuckle is designed with a chrome plated aluminium bronze body and marine-grade stainless steel terminals, ensuring high resistance to corrosion and thread seizing, providing reliable and precise rig tuning in line with Seldén's guidelines.

Wire diam: 12 mm
Thread size: 3/4”
Hole: 19.50 mm
L-MIN: 340 mm
L-MAX: 548 mm
W: 36 mm
X: 17 mm
