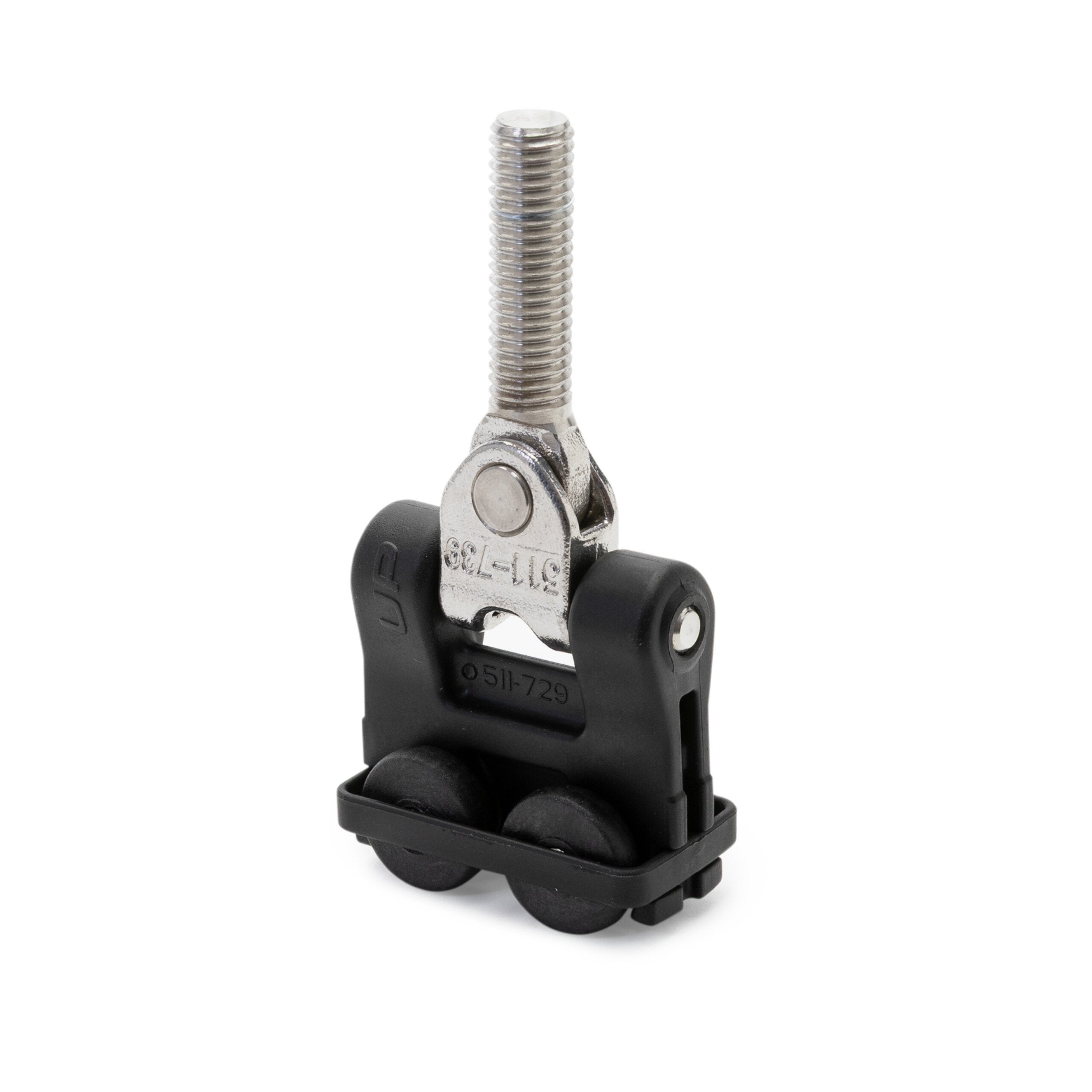

IWS 45 fullbatten car with M10 stud - for Seldén mast sections C137, C153, C180

This composite fullbatten car features a M10 threaded stud and can be used with corresponding batten receptacles.

The IWS car simplifies hoisting, reefing and dousing and is used for Seldén’s newest C-sections. The side load created by the full-batten is taken up by the wheels as the slider tilts to the side and a buffer bearing centers the slider in the groove. The mast groove and the car makes for a perfect match handling loads from all direction without any extra hardware fitted to the mast.

Learn more:

https://www.seldenmast.com/products/sail-hardware/

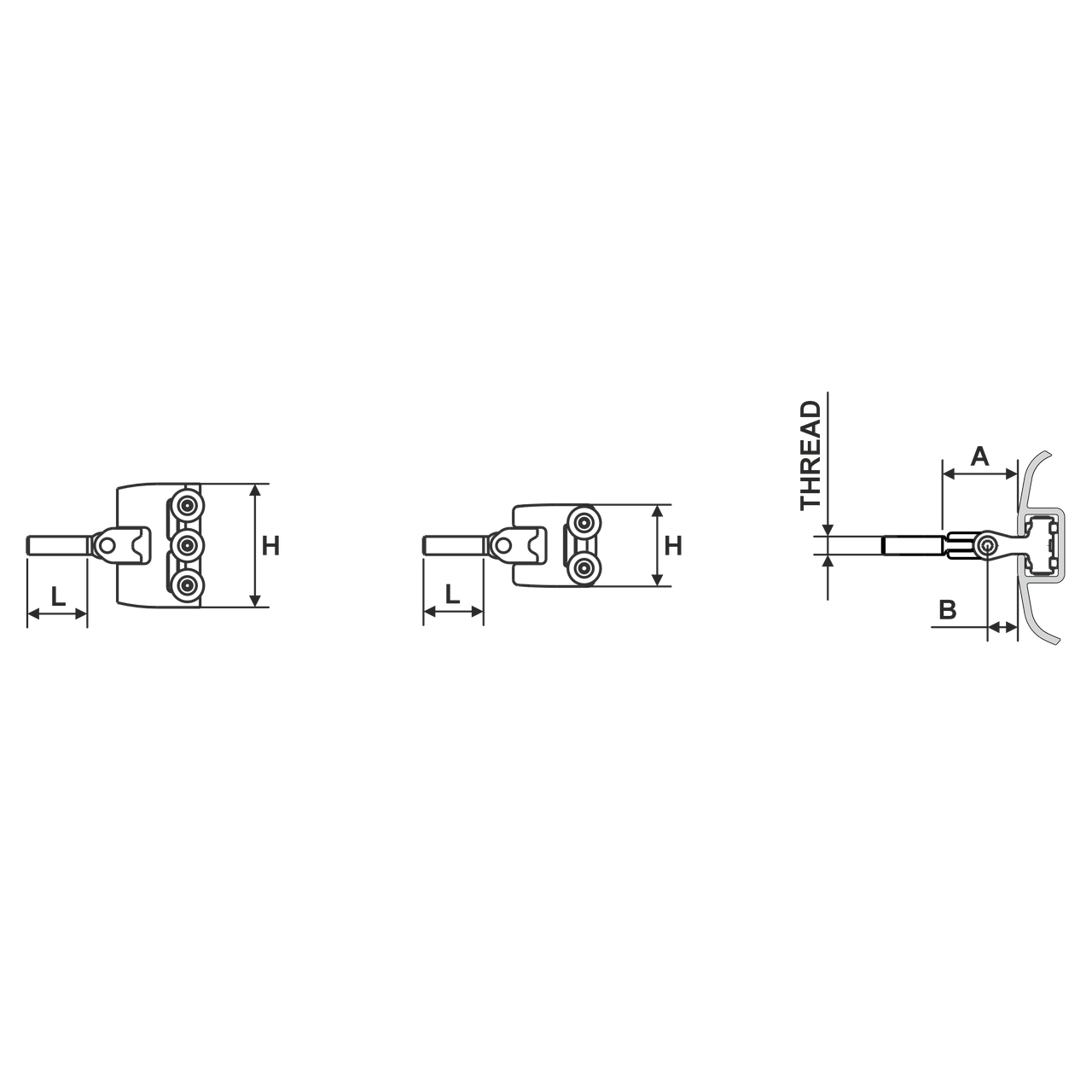

Model: IWS 45
H: 46 mm
A: 40 mm
L: 33 mm
B: 16 mm
THREAD: M10
SWL+Horizontal: 3.00 kN
RM: 97.00 kNm
Mast: C137,C153,C180
