Heel lift arrangement for Spinnaker pole. Cheek blocks, Fairleads and Cam cleats included. For larger Seldén mast sections.

This external 1:1 purchase heel lift system is often used on race boats with the spinnaker pole stowed over the foredeck and permanently fixed to the spinnaker pole car. It makes for simple and safe maneuvers such as dip gybes when the pole heel must be pulled up for the pole to pass the forestay.

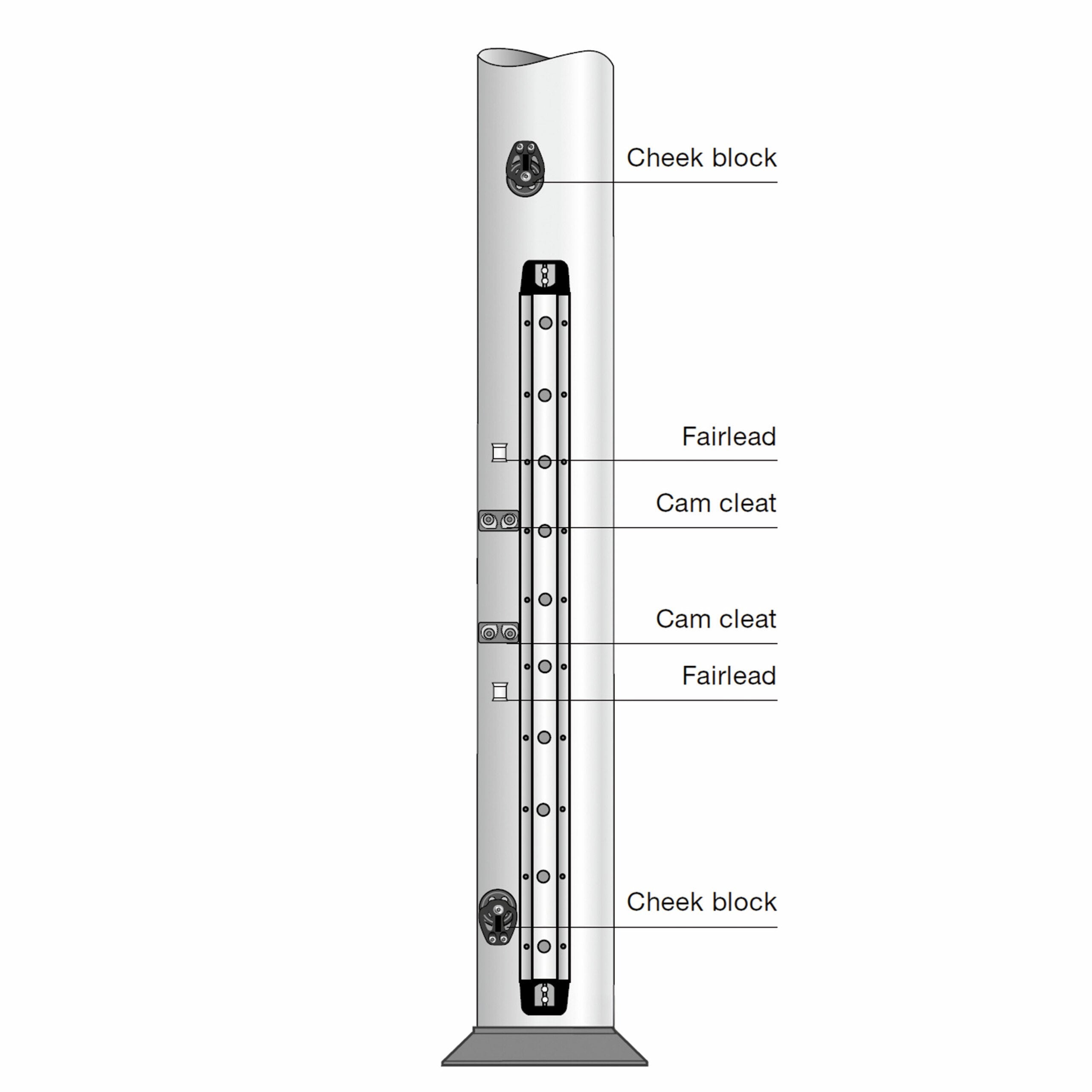

The kit includes one 406-001-17 cheek block, one 406-001-15 cheek block, two fairleads 508-604 and two cam cleats 433-365-01 and fasteners.

Not included: track, endstops and line. Suitable line size: ø10 mm.

Suitable for Seldén mast sections size up to C304/F305..
