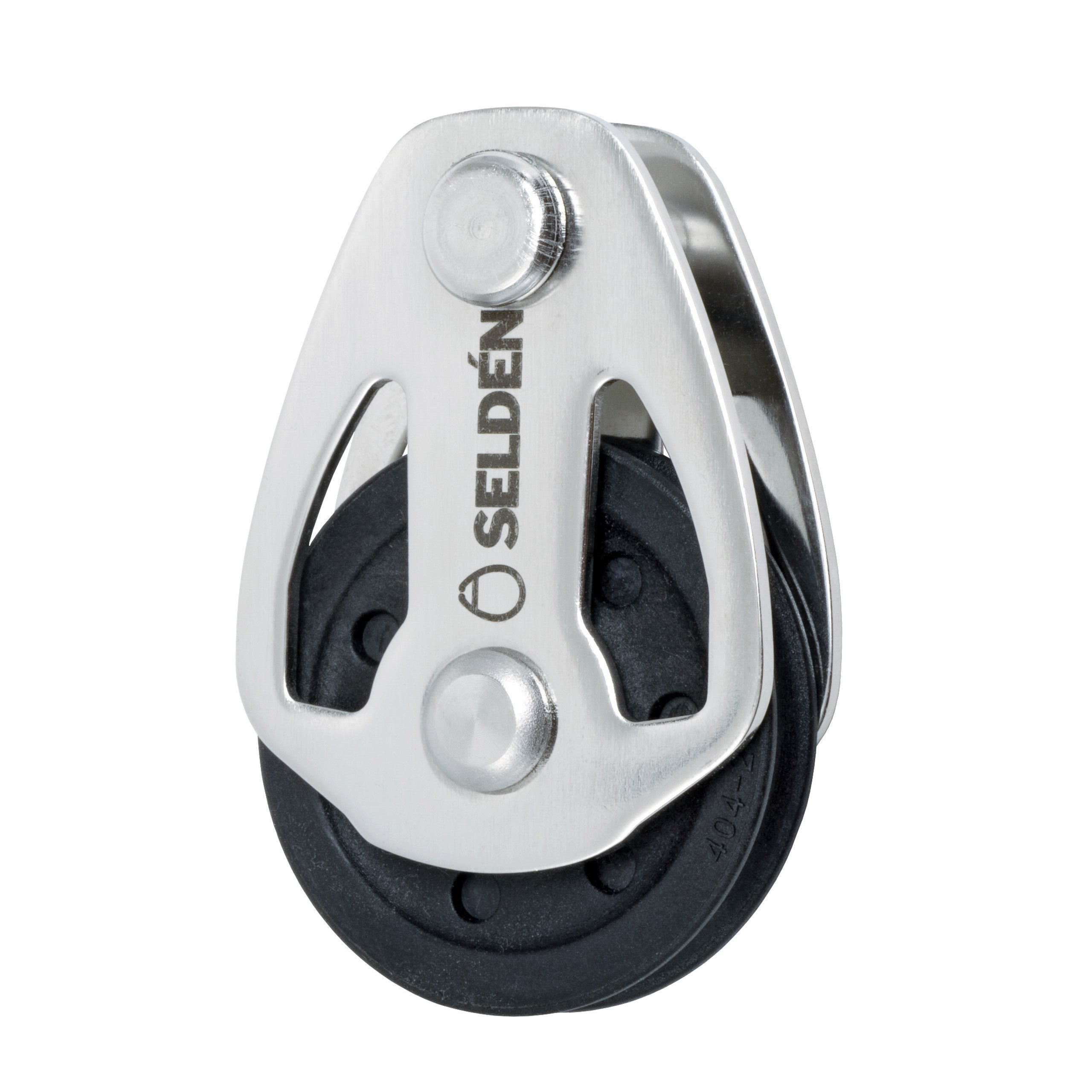

45 mm Wire Block - For 5mm backstay and 4 mm soft wire, Composite Sheave

45 mm plain bearing for high load applications such as backstay. Stainless cheeks and composite sheave with polymer plain bearing. Features a ø8 mm pin and a bushing for ø10 mm application.

This block is optimised for soft wires (7x19 strand) or Dyneema / Spectra core.

SubType: HLPBB
Size: 45
SWL: 1100 kg
W1: 9.50
Pin1: 8.00
Pin2: 10.00
Breaking Load (kN): 2200 kg
MaxBackstayW: 5 mm
MaxSheaveW: 4 mm
