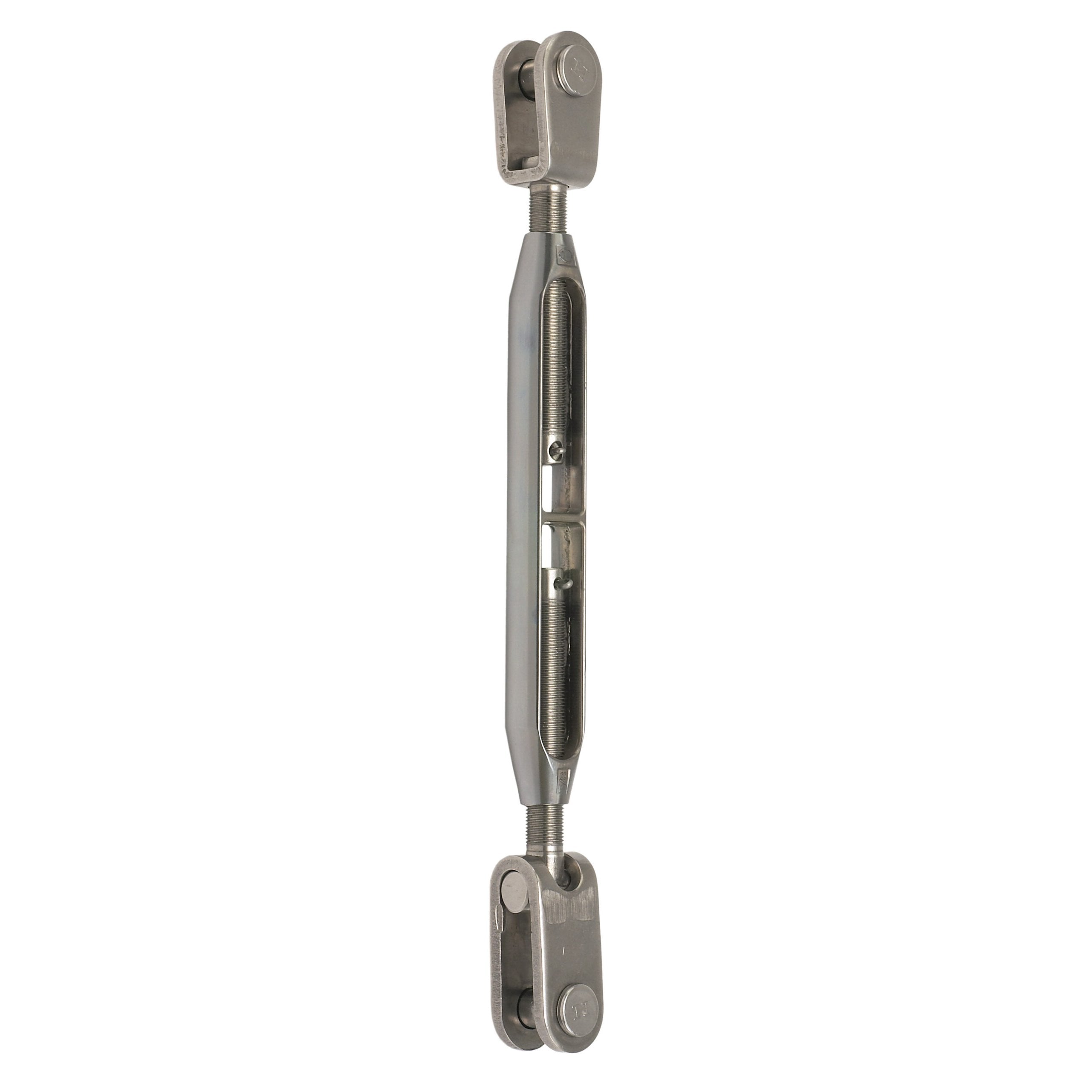

Turnbuckle - Bronze Body, Stainless Terminals, 5/16", Fork/Toggle, ø8 mm Clevis Pin

Turnbuckle with Fork/Toggle terminals, thread size 5/16", to be combined with ø4 or ø5 mm wire applications. The use of chrome plated aluminium bronze for the body and high-grade marine stainless steel for the terminals provides excellent corrosion resistance and prevents thread seizing, allowing for safe and precise rig adjustments in accordance with Seldén's recommendations.

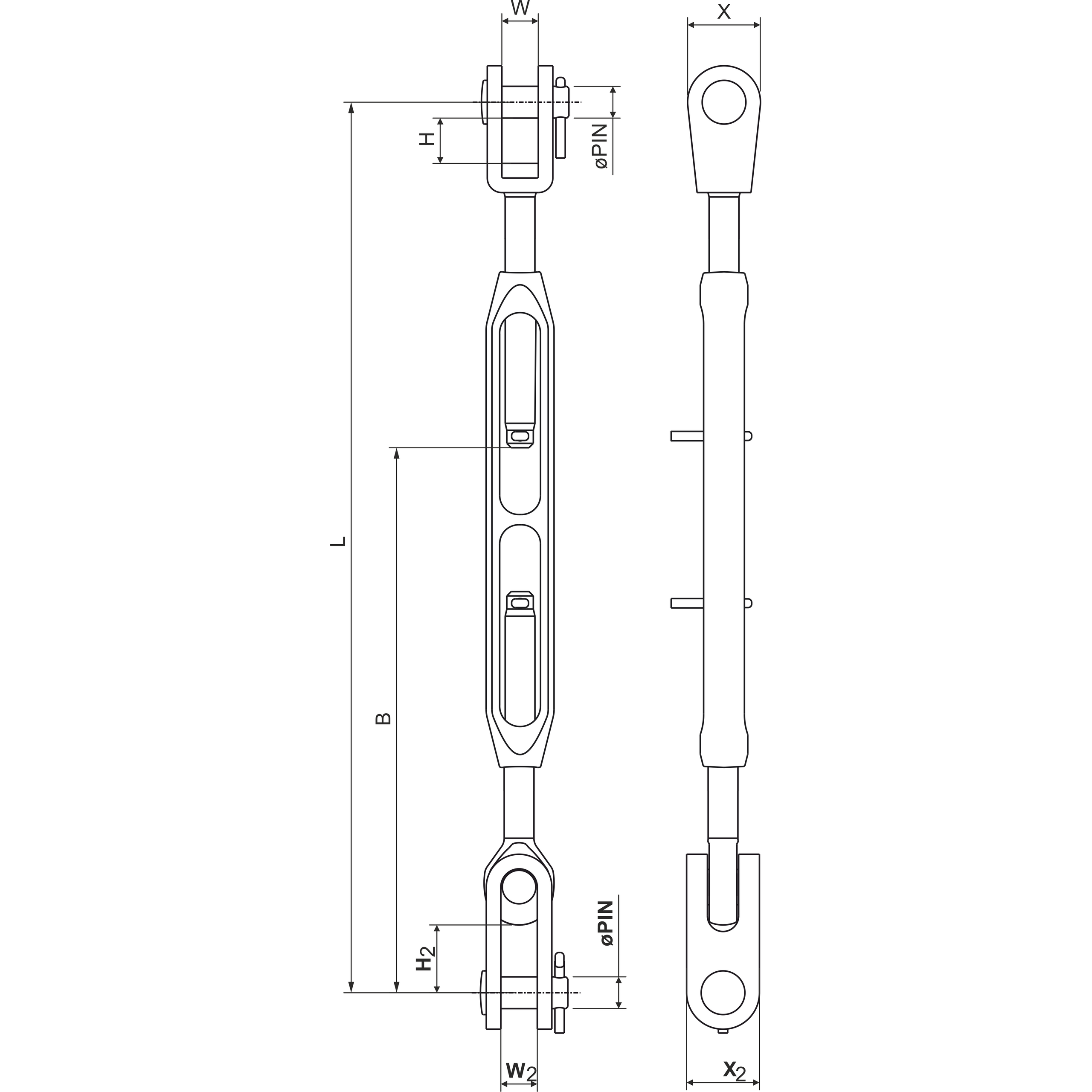

Thread size: 5/16"
Clevis pin Ø: 8.00 mm
L-MIN: 155 mm
L-MAX: 237 mm
W: 9.00 mm
H: 15.00 mm
X: 16 mm
H2: 18.00 mm
X2: 16 mm
W2: 9.00 mm
