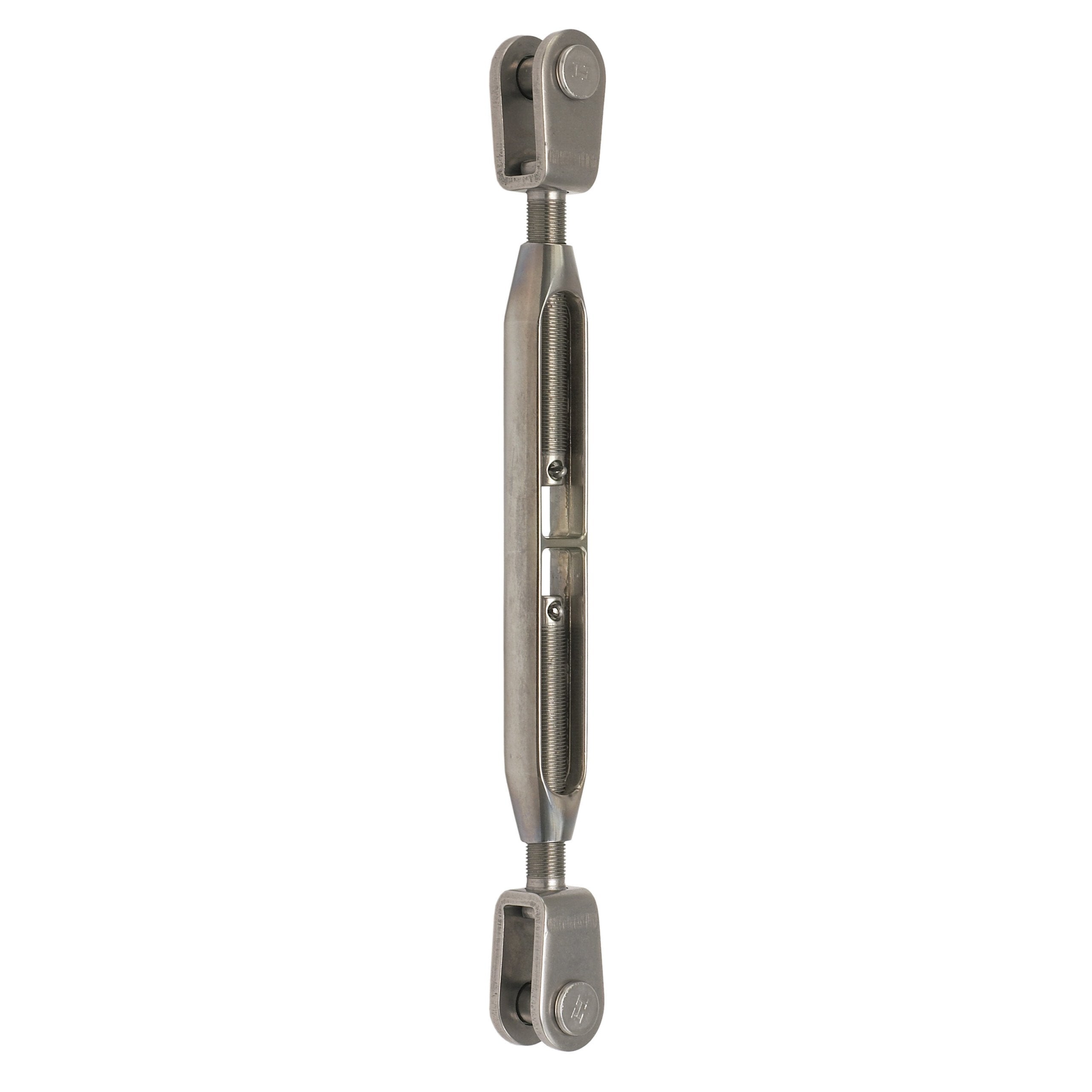

Turnbuckle - Bronze Body, Stainless Terminals, 5/16", Fork/Fork, ø8 mm Clevis Pin

Turnbuckle with Fork/Fork terminals, thread size 5/16", to be combined with ø4 or ø5 mm wire applications. Constructed with a chrome plated aluminium bronze body and marine-grade stainless steel terminals, this turnbuckle offers superior resistance to corrosion and thread seizing, ensuring reliable and precise rig tuning in accordance with Seldén's guidelines.

Thread size: 5/16"
Clevis pin Ø: 8.00 mm

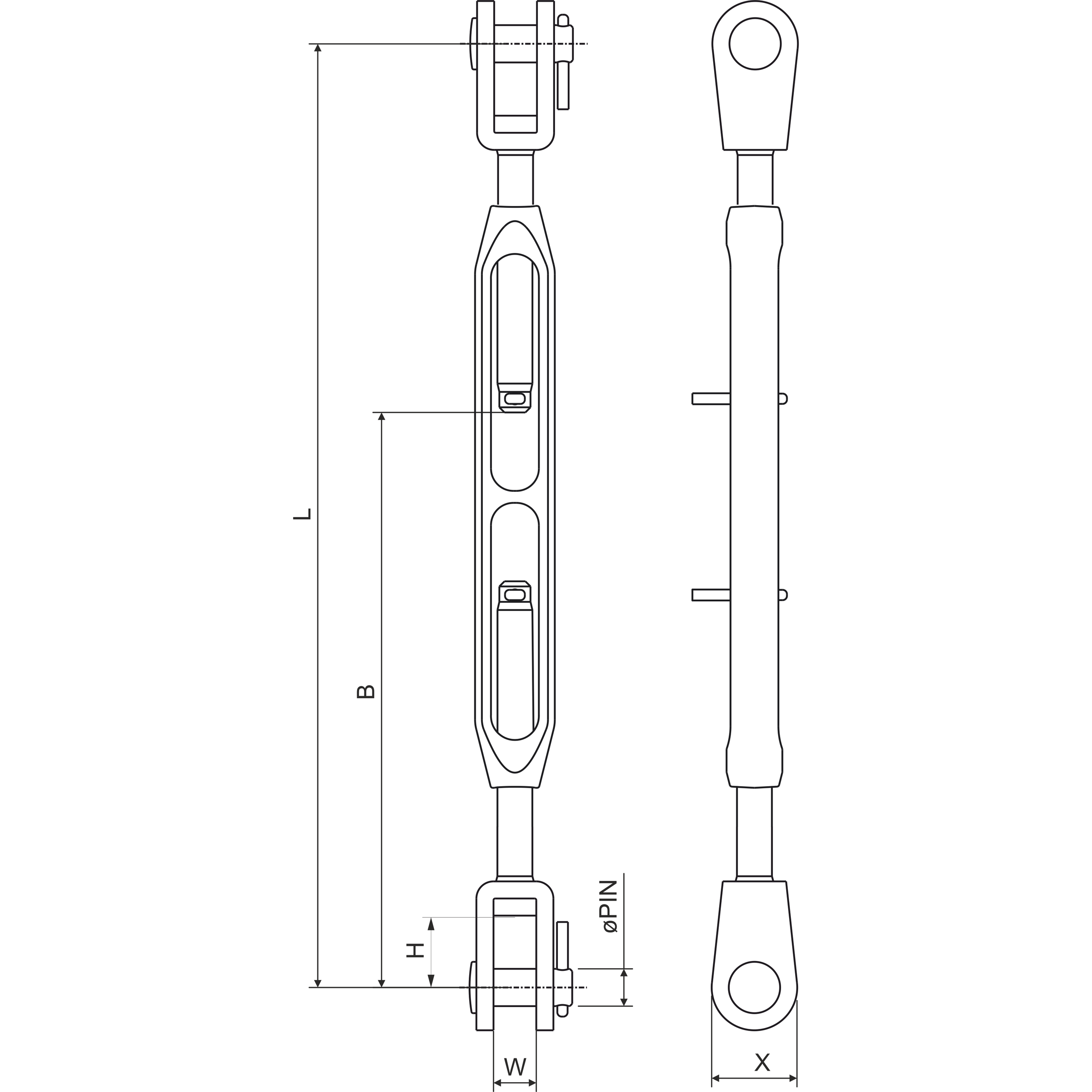

L-MIN: 165 mm
L-MAX: 247 mm
B-MIN: 88 mm
B-MAX: 170 mm
W: 9.00 mm
H: 15.00 mm
X: 16 mm
