MDS 80 - Heavy Duty Full-batten car in aluminium with M10 stud - for Seldén mast sections C321 and C365

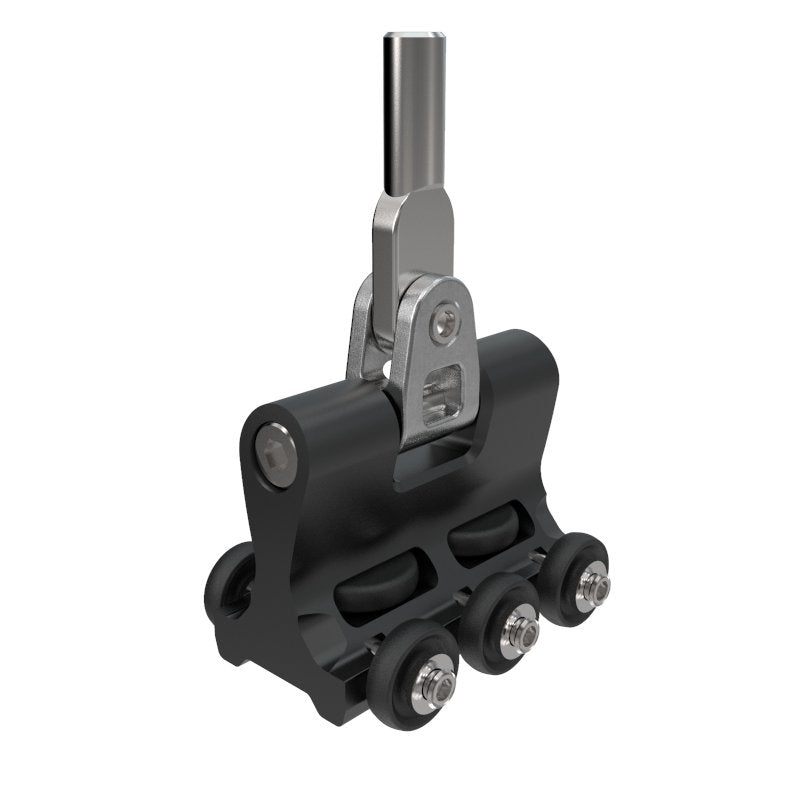

A six wheel, 80 mm long full-batten car in aluminium with M10 stud

Dimensioned for a righting moment at 30° heel of maximum 550 kNm on a masthead rigged monohull yacht and 450 kNm on a fractional rig.

The MDS full-batten concept  -  Full support in all directions

As the name implies, Seldén’s MDS (Multi-Directional Support) cars are supported in all directions, making sail handling simpler.

A full batten always creates a side load on the cars, particularly when you release the halyard for taking a reef. Each MDS car has side-load absorbing wheels that run against the guiding flanges in the luff groove. The interaction between the mast section and the MDS car deals with longitudinal loads, as well as side loads. This is the essence of the MDS concept. Since the cars need no external track, there is also less weight aloft.

The MDS cars are easy to keep clean and are easy to install or remove from the luff groove.

The MDS system is a suitable complement to the Seldén Single Line Reef boom. With such a combination on board, you have a simple and easily manoeuvred system for handling the mainsail in all weathers.

Learn more about our Sail hardware from Seldén's Sailmakers Guide

https://support.seldenmast.com/files/1731490672/595-542-E.pdf

Model: MDS 80 Alu
Toggle: M10
Mast: C321,C365
SWL+lat: 3.50 kN
SWL+long: 9.00 kN
RM30Mono-MH: 550
RM30Mono-FR: 450
RM30Multi-MH: 750
RM30Multi-FR: 600
