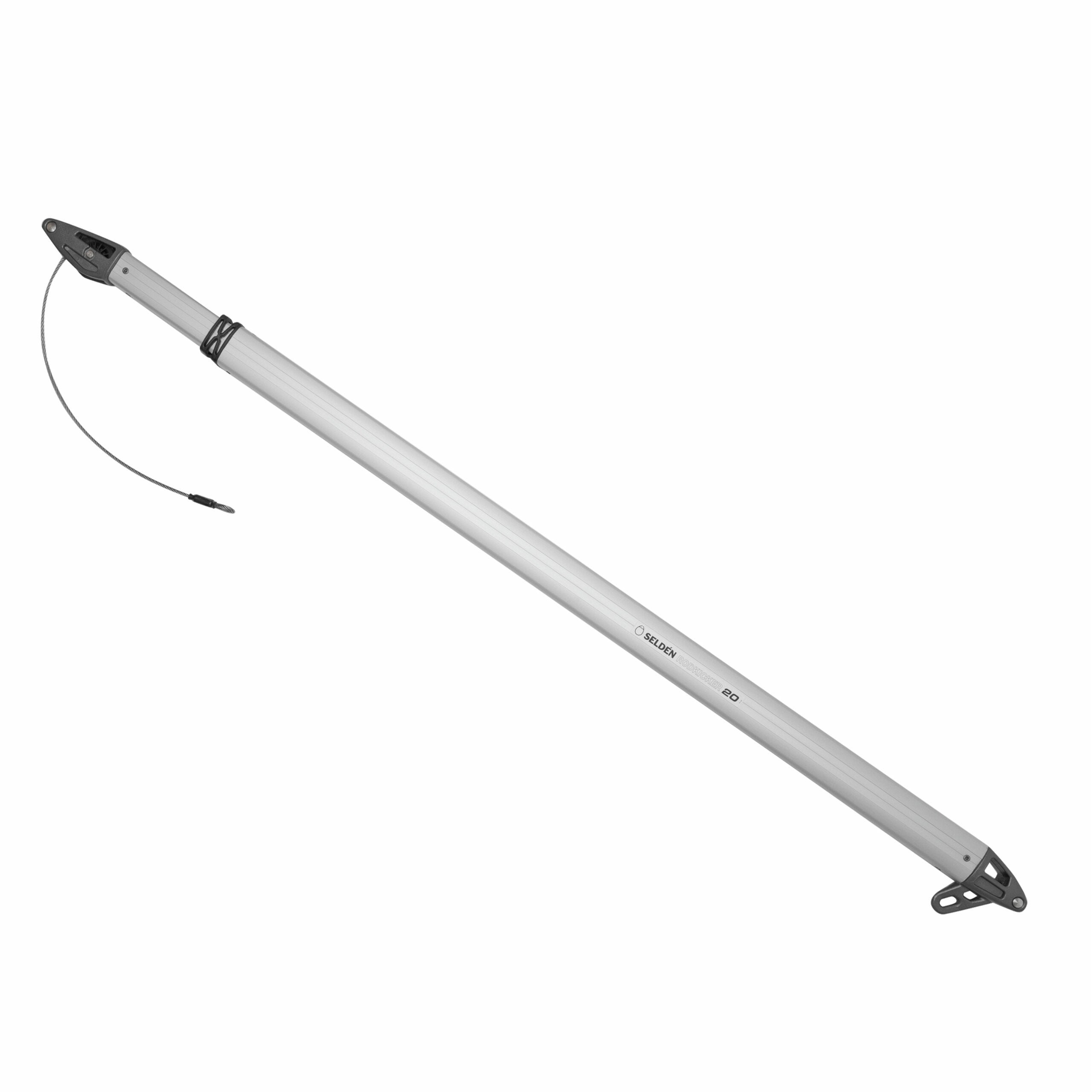

Rodkicker Type 20S, Min length 1720 mm - 5000N Gas spring

Rodkicker Type 20S is recommended for masthead rigged yachts with a displacement of max 11 tonnes and fractional rigged yachts up to 9 tonnes.

076-046-16 includes a 5000N gas spring which lifts the boom when the kicking strap is released, opening the leech of the sail. Excellent for trimming the main in light air. A Rodkicker with a gas spring replaces the topping lift, making reefing fast and simple.

Another purpose with this rigid vang is to facilitate sail handling when reefing, preventing the boom from dropping into the cockpit or onto the coach roof. It also doubles the purchase of your kicking strap. Kicking strap is not included.

The right size of Rodkicker, and correct spring force, is determined by the displacement of the boat, the righting moment at 30° heel angle, the boom height above deck, the length of the boom (E-measurement) and whether the mast is of conventional type or a furling mast. All of this is thoroughly explained on Seldén's website.

Learn more about Rodkicker and how to select the right size:

https://support.seldenmast.com/en/products/rigid_vangs_-_rodkickers/rodkicker_rigid_vang.html

Model: 20
SubType: 20
Length: 1720 mm
Safe working Load: 1800 kg
SpringForce: 5000 N

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
