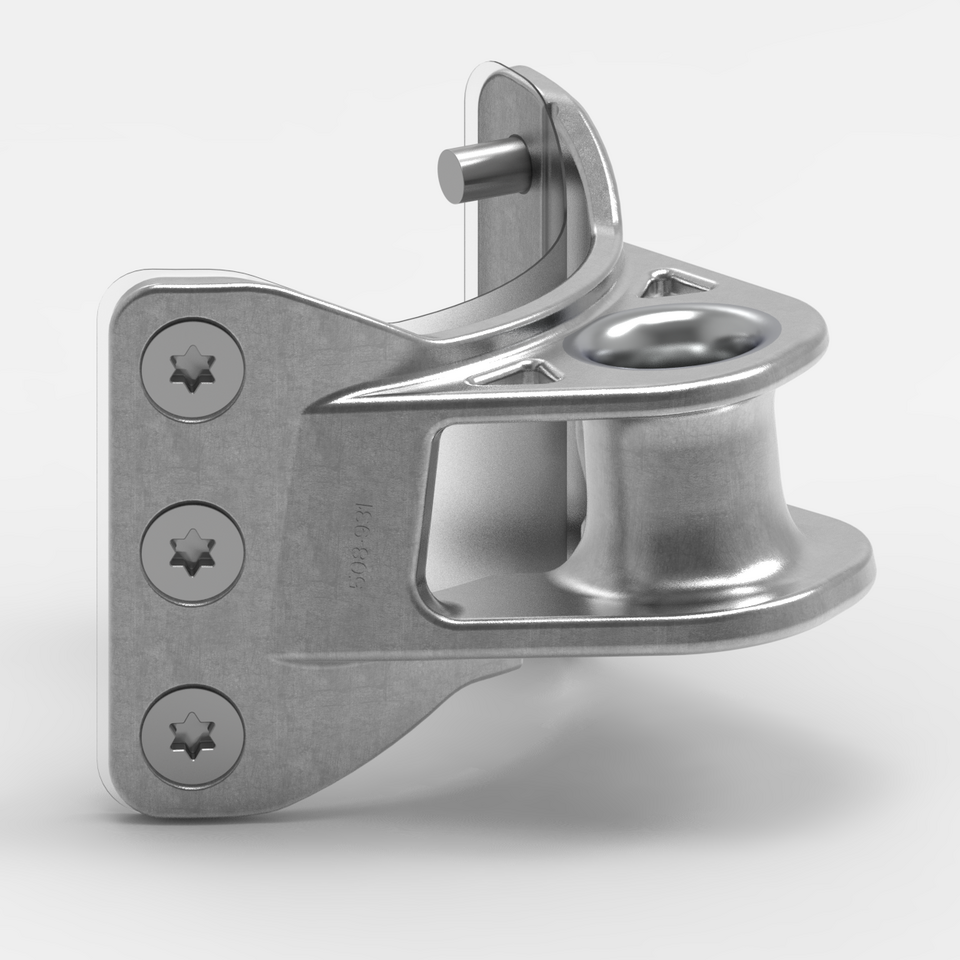

Halyard Lead, Single - For rope halyards (not wire) C365-F406

Single halyard lead fitting in electro polished stainless steel for routing of one rope halyard. The fitting is slightly angled to achieve a perfect alignment.

In order to prevent galvanic corrosion between stainless and aluminium, the fitting shall be lacquered on the inside to insulate it from the mast. Any other kind of insulation, such as a thin plastic layer, will do just as well. Use only for rope halyard (not wire).

M10 screws included.

Designed for Seldén sections C365, F370, F406, but the sides can be shaped in a vise to fit other similar sized sections .

SWL: 2000 kg
Max Halyard Ø: 16 mm
Max RM MH: 247 kNm
Max RM Fr: 218 kNm
Type: Single
