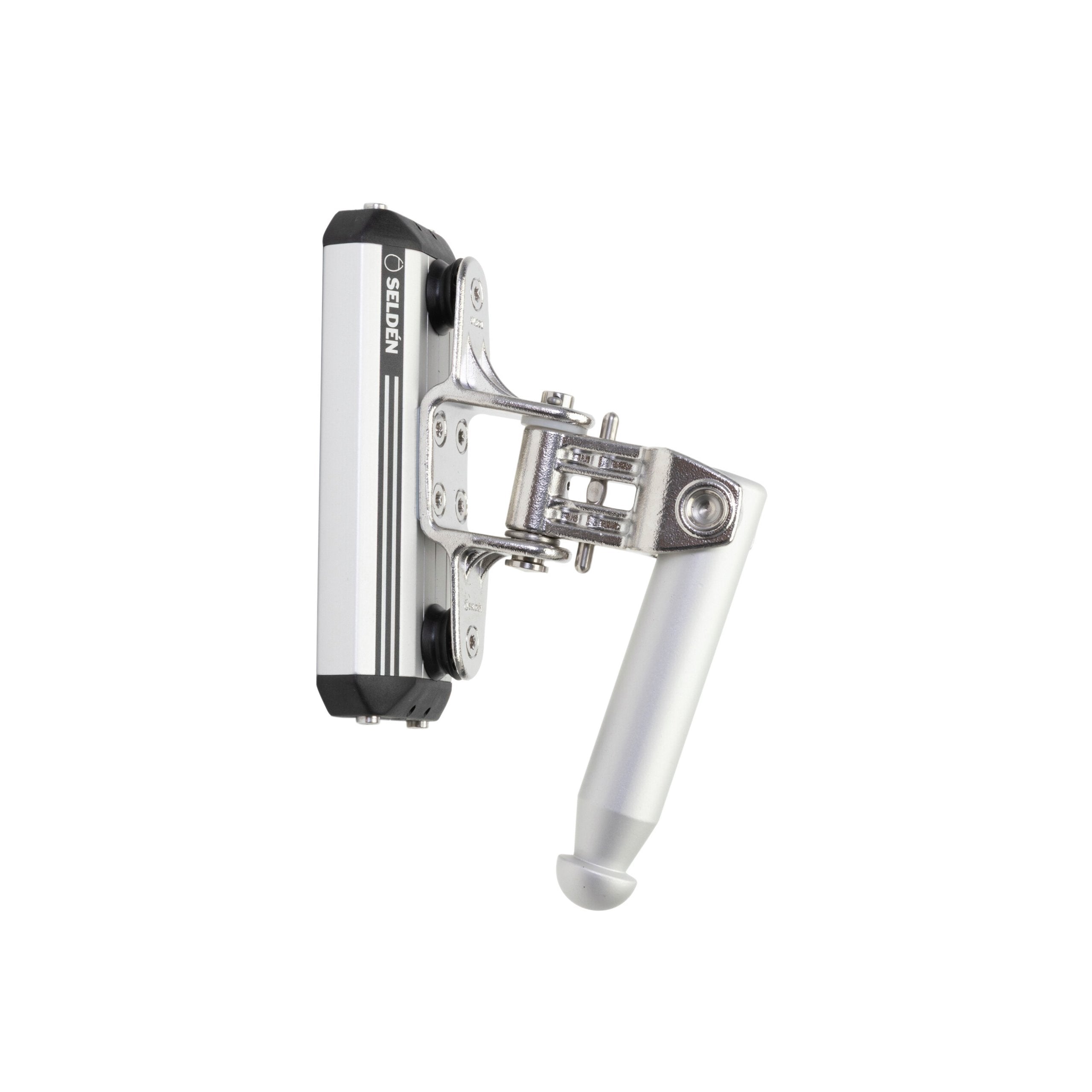

Spinnaker Pole Car, RCB30, 10° peak for bayonet inboard end, 2:1 purchase

Same as 511-585-04 but with plain bearing sheaves for 2:1 pole heel lift purchase. The car is made of extruded clear anodized aluminium with composite ends. The bracket is stainless steel and angled 10° down to perform well with VPS installation (Vertical Pole Stowage). Peak is aluminium and the ball bearings are made of Torlon. The car is delivered on a short piece of track and as the ball bearings are not captive it is important to align the transport-track with the track on the mast, move the car over and fix the endstop.

Combine with a Seldén Bayonet inner end.

RCB stands for Round Circulating Ball bearings.

Track Type: RCB 30
Description: 10° bracket,& bayonet
Cars: 1x
Purchase: 2
MaxRM: 120 kN
Pole end standard: 534-778

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
