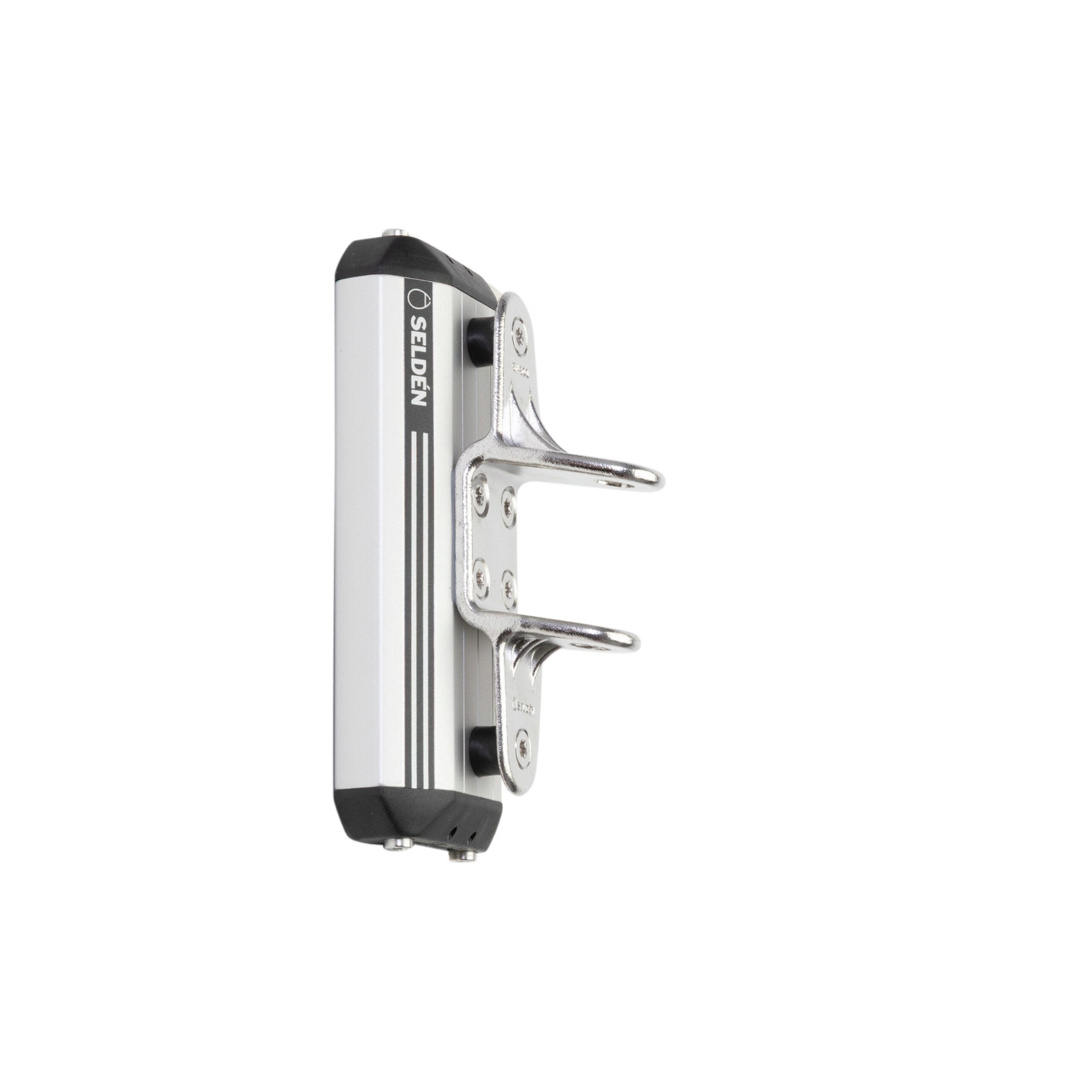

Spinnaker Pole Car, RCB30, 10° bracket, Excluding toggle, 1:1 purchase

Spinnaker pole car running on our 30 mm RCB track. It has attachment for pole heel lift up and down and it is made of extruded clear anodized aluminium with composite ends. The bracket is stainless steel and angled 10° down to perform well with VPS installation (Vertical Pole Stowage).

Toggle is excluded to allow custom applications.

Distance between flanges: 43 mm

Hole dia ø: 12 mm

The car is delivered on a short piece of track and as the ball bearings are not captive it is important to align the transport-track with the track on the mast, move the car over and fix the endstop.

Combine with a Seldén Bayonet inner end.

RCB stands for Round Circulating Ball bearings.

Track Type: RCB 30
Description: 10° bracket
Cars: 1x
Purchase: 1
MaxRM: 120 kN
Note: *
