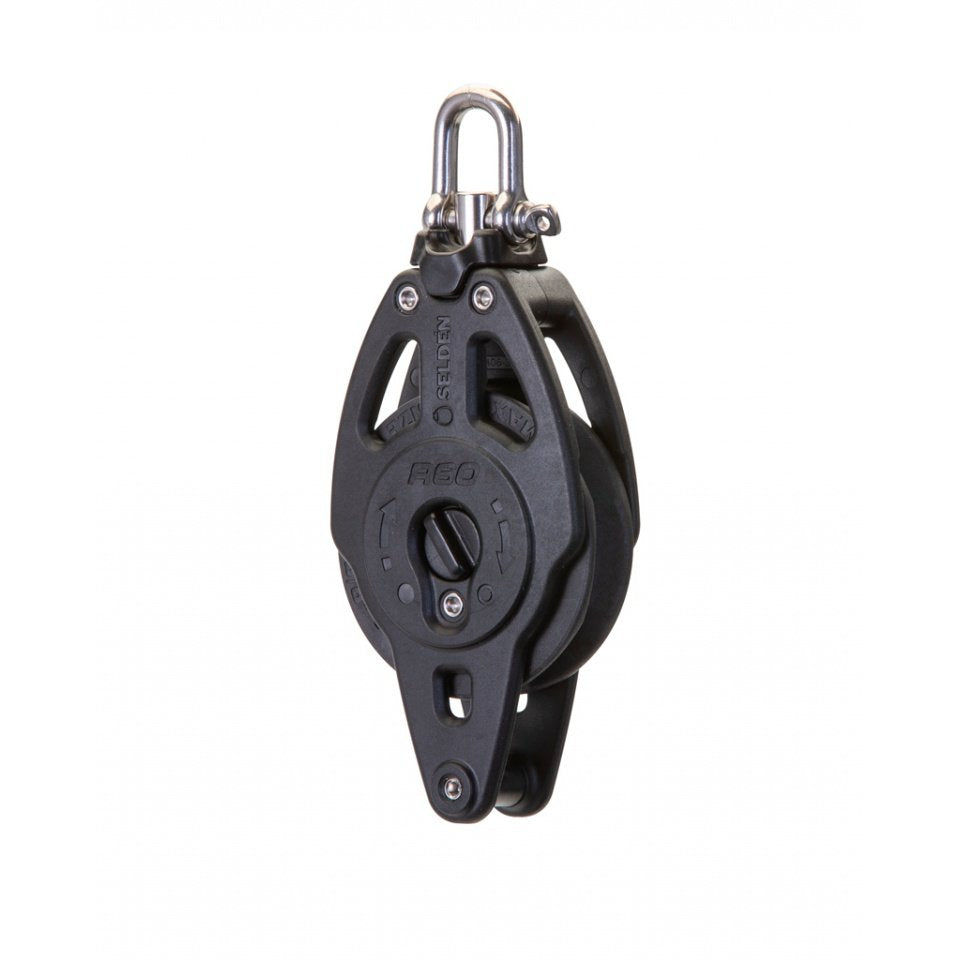

R60 - 60 mm Manual Ratchet Block - Single, Swivel, Becket

The Single Becket R60 manual ratchet block is designed for dynamic applications on dinghies and keelboats and features a ø60 mm composite sheave. A swivel lock, a plastic washer which is placed between block body and shackle, is included for fixed 0° or 90° shackle position.

The block is designed with lightweight Delrin ball bearings and a switch on each side to select ratchet function or a free spinning sheave.

When the ratchet is activated it locks the sheave in one direction and allows the sailor to relax a bit without cleating the line.

Safe working Load: 250 kg
Breaking Load: 500 kg
Max line size: 10 mm

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
