R60 - 60 mm Manual Ratchet Block - Cheek, Clockwise

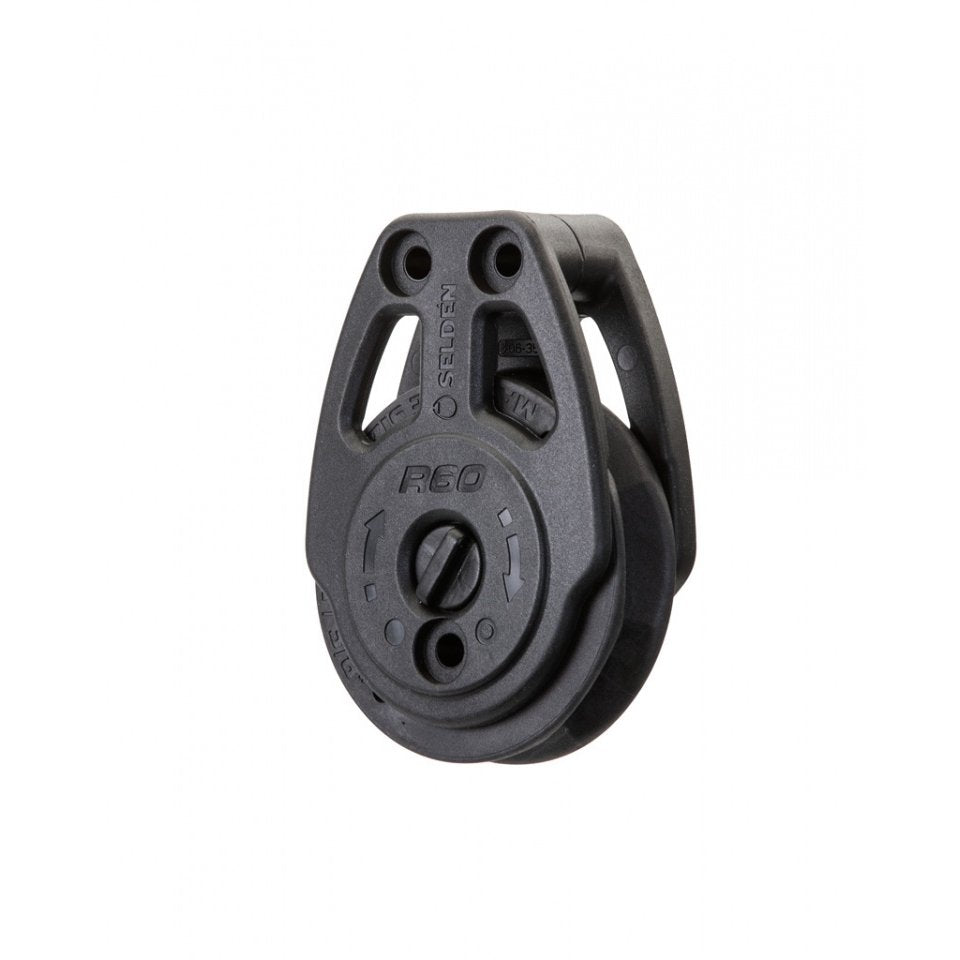

The Clockwise Cheek R60 manual ratchet block is designed for spinnaker/gennaker sheet applications on dinghies and keelboats and features a ø60 mm composite sheave. The sheave has a clockwise direction when in ratchet mode and is therefore intended to be used for starboard sheet.

The block is designed with lightweight Delrin ball bearings and a switch to select ratchet function or a free spinning sheave. When the ratchet is activated it locks the sheave in one direction and allows the sailor to relax a bit without cleating the line.

 Easy to install with 3 M5 screws.

Safe working Load: 250 kg
Breaking Load: 500 kg
Max line size: 10 mm

More information

Visit our Support website for instructions for assembly and operations, detailed technical information, service manuals, sparepart lists and list of retailers. Click here
