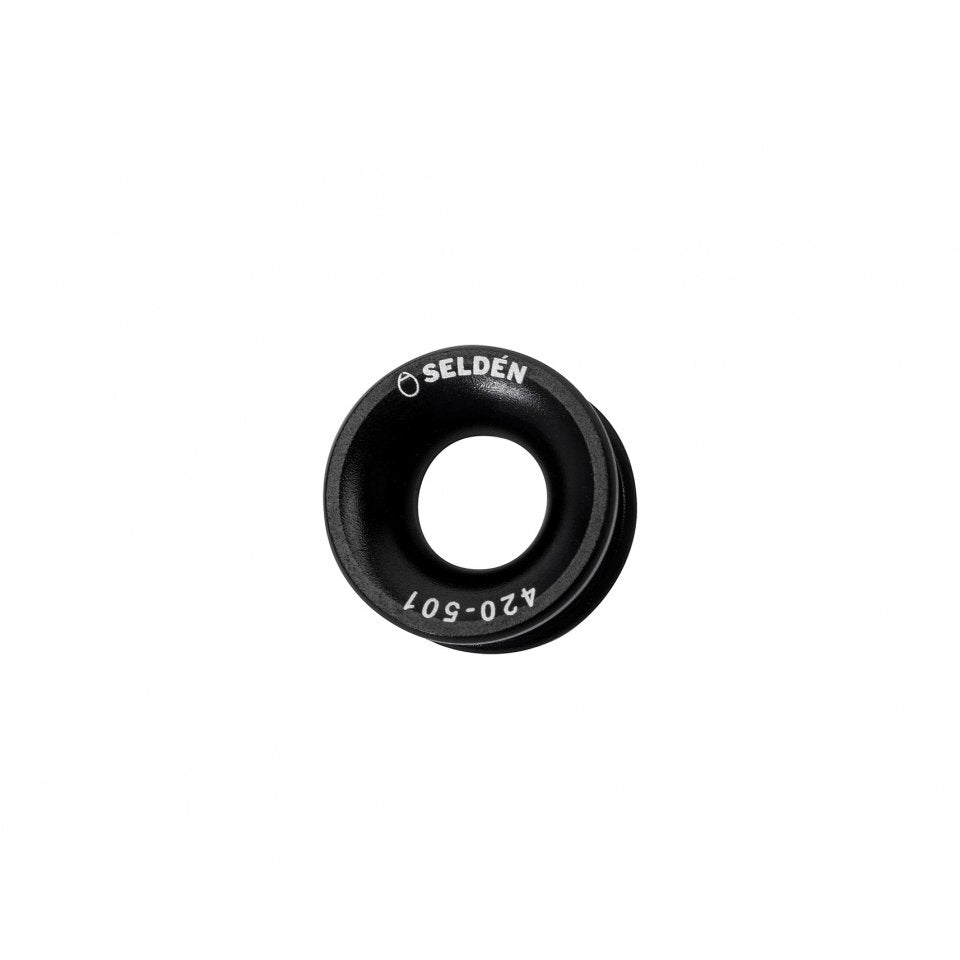

Low friction ring, Anodized Aluminium, Inner/Outer dia ø18/8 mm, Width 9 mm

This is our second smallest low friction ring, suitable for up to ø5 mm line.

A low friction ring is a simpler and lighter alternative to a plain bearing block. They are produced in black anodised aluminium and have a big inner radius for low friction and an outer slot for attachment of a line or rubber cord. Suitable applications are backstay cascades, barber haulers, kicker tackles or any other applications with static load.

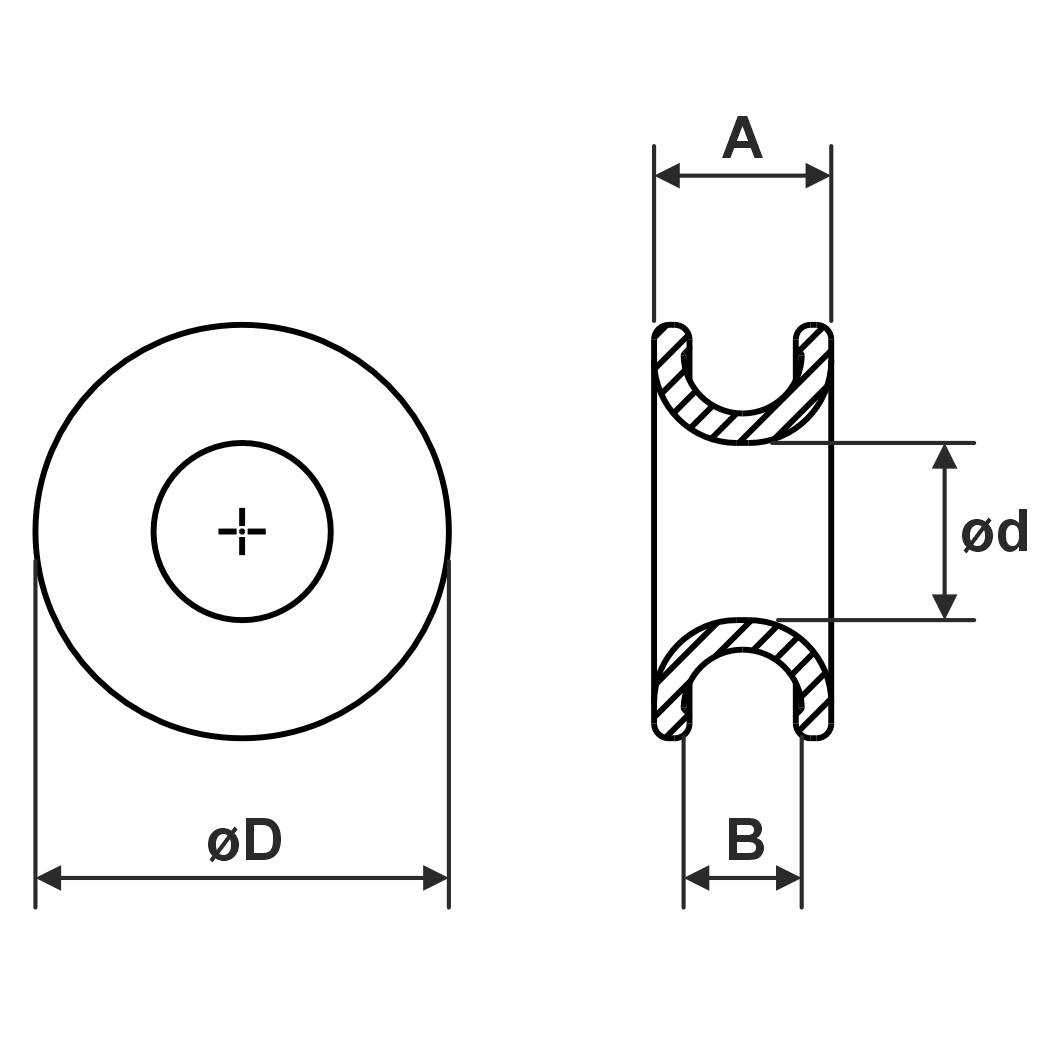

Diam. outer: 18 mm
Diam. inner: 8 mm
Safe working Load: 350 kg
Breaking Load: 700 kg
Max line size: 5 mm
