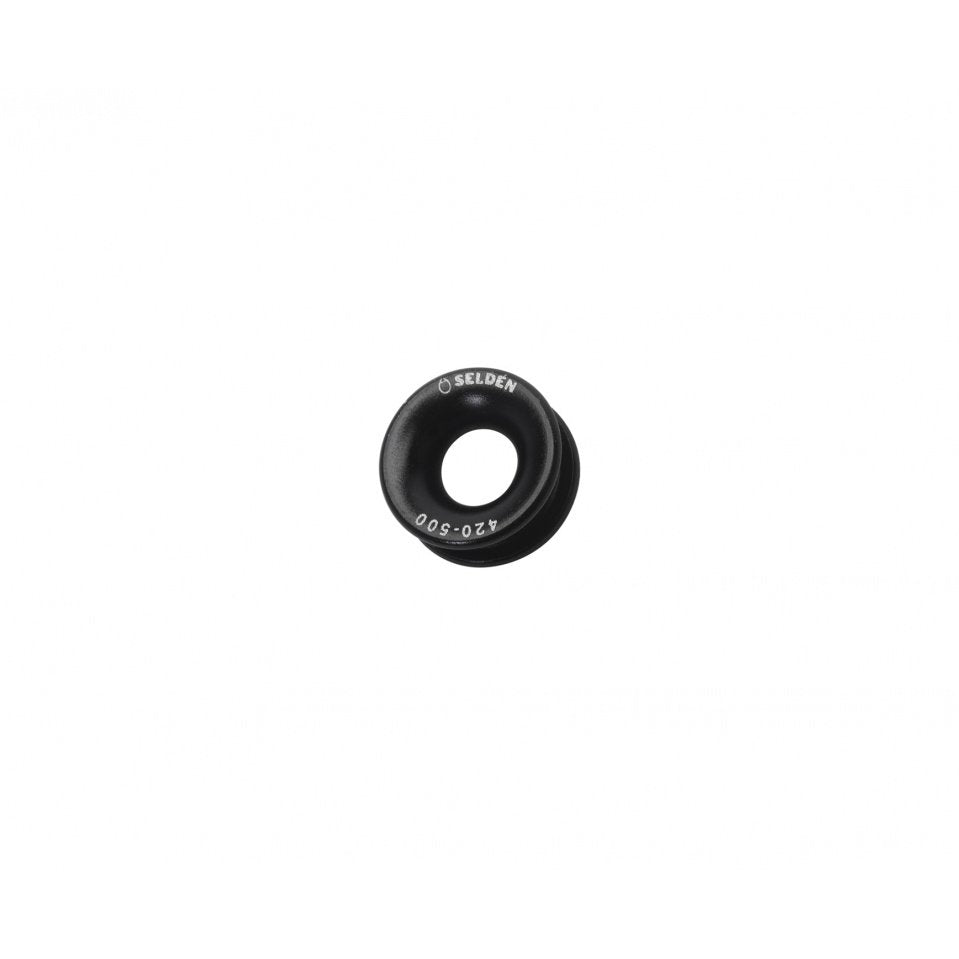

Low friction ring, Anodized Aluminium, Inner/Outer dia ø12/5 mm, Width 5 mm

This is our smallest low friction ring, suitable for a ø3 mm line.

A low friction ring is a simpler and lighter alternative to a plain bearing block. They are produced in black anodised aluminium and have a big inner radius for low friction and an outer slot for attachment of a line or rubber cord. Suitable applications are backstay cascades, barber haulers, kicker tackles or any other applications with static load.

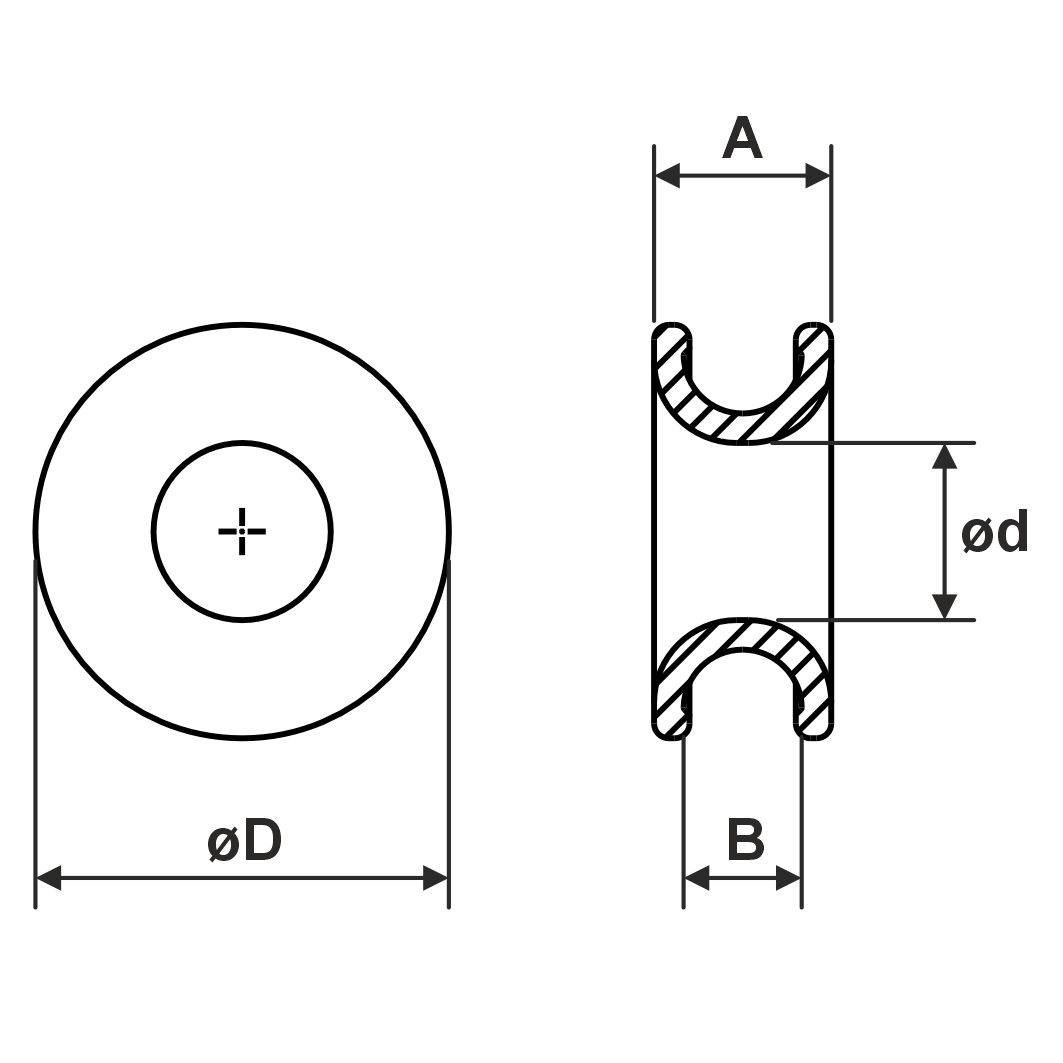

Diam. outer: 12 mm
Diam. inner: 5 mm
Safe working Load: 150 kg
Breaking Load: 300 kg
Max line size: 3 mm
